Technické parametry :
Materiál PA, závit pozinkovaný
Barva černá
*****

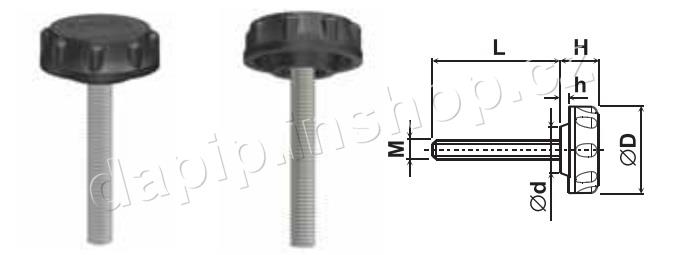

Tabulka rozměrů :
oD M x L od H h
18,0 M 4 x 8 12,5 10,0 1,0
18,0 M 4 x 13 12,5 10,0 1,0
18,0 M 4 x 18 12,5 10,0 1,0
18,0 M 4 x 23 12,5 10,0 1,0
18,0 M 4 x 28 12,5 10,0 1,0
18,0 M 4 x 33 12,5 10,0 1,0
18,0 M 5 x 8 12,5 10,0 1,0
18,0 M 5 x 13 12,5 10,0 1,0
18,0 M 5 x 18 12,5 10,0 1,0
18,0 M 5 x 23 12,5 10,0 1,0
18,0 M 5 x 28 12,5 10,0 1,0
18,0 M 5 x 33 12,5 10,0 1,0
18,0 M 5 x 38 12,5 10,0 1,0
18,0 M 6 x 8 12,5 10,0 1,0
18,0 M 6 x 13 12,5 10,0 1,0
18,0 M 6 x 18 12,5 10,0 1,0
18,0 M 6 x 23 12,5 10,0 1,0
18,0 M 6 x 28 12,5 10,0 1,0
18,0 M 6 x 33 12,5 10,0 1,0
18,0 M 6 x 38 12,5 10,0 1,0
27,0 M 5 x 8 15,5 11,5 2,5
27,0 M 5 x 13 15,5 11,5 2,5
27,0 M 5 x 18 15,5 11,5 2,5
27,0 M 5 x 23 15,5 11,5 2,5
27,0 M 5 x 28 15,5 11,5 2,5
27,0 M 5 x 33 15,5 11,5 2,5
27,0 M 5 x 38 15,5 11,5 2,5
27,0 M 5 x 43 15,5 11,5 2,5
27,0 M 5 x 48 15,5 11,5 2,5
27,0 M 6 x 8 15,5 11,5 2,5
27,0 M 6 x 13 15,5 11,5 2,5
27,0 M 6 x 18 15,5 11,5 2,5
27,0 M 6 x 23 15,5 11,5 2,5
27,0 M 6 x 28 15,5 11,5 2,5
27,0 M 6 x 33 15,5 11,5 2,5
27,0 M 6 x 38 15,5 11,5 2,5
27,0 M 6 x 43 15,5 11,5 2,5
27,0 M 6 x 48 15,5 11,5 2,5
27,0 M 8 x 8 15,5 11,5 2,5
27,0 M 8 x 13 15,5 11,5 2,5
27,0 M 8 x 18 15,5 11,5 2,5
27,0 M 8 x 23 15,5 11,5 2,5
27,0 M 8 x 28 15,5 11,5 2,5
27,0 M 8 x 33 15,5 11,5 2,5
27,0 M 8 x 38 15,5 11,5 2,5
27,0 M 8 x 43 15,5 11,5 2,5
27,0 M 8 x 48 15,5 11,5 2,5
40,0 M 8 x 8 21,0 17,0 4,0
40,0 M 8 x 13 21,0 17,0 4,0
40,0 M 8 x 18 21,0 17,0 4,0
40,0 M 8 x 23 21,0 17,0 4,0
40,0 M 8 x 28 21,0 17,0 4,0
40,0 M 8 x 33 21,0 17,0 4,0
40,0 M 8 x 38 21,0 17,0 4,0
40,0 M 8 x 43 21,0 17,0 4,0
40,0 M 8 x 48 21,0 17,0 4,0
40,0 M 8 x 53 21,0 17,0 4,0
40,0 M 8 x 58 21,0 17,0 4,0
40,0 M10 x 8 21,0 17,0 4,0
40,0 M10 x 13 21,0 17,0 4,0
40,0 M10 x 18 21,0 17,0 4,0
40,0 M10 x 23 21,0 17,0 4,0
40,0 M10 x 28 21,0 17,0 4,0
40,0 M10 x 33 21,0 17,0 4,0
40,0 M10 x 38 21,0 17,0 4,0
40,0 M10 x 43 21,0 17,0 4,0
40,0 M10 x 48 21,0 17,0 4,0
40,0 M10 x 53 21,0 17,0 4,0
40,0 M10 x 58 21,0 17,0 4,0
40,0 M12 x 8 21,0 17,0 4,0
40,0 M12 x 13 21,0 17,0 4,0
40,0 M12 x 18 21,0 17,0 4,0
40,0 M12 x 23 21,0 17,0 4,0
40,0 M12 x 28 21,0 17,0 4,0
40,0 M12 x 33 21,0 17,0 4,0
40,0 M12 x 38 21,0 17,0 4,0
40,0 M12 x 43 21,0 17,0 4,0
40,0 M12 x 48 21,0 17,0 4,0
40,0 M12 x 53 21,0 17,0 4,0
40,0 M12 x 58 21,0 17,0 4,0
40,0 M12 x 63 21,0 17,0 4,0
40,0 M12 x 68 21,0 17,0 4,0
40,0 M12 x 73 21,0 17,0 4,0
40,0 M12 x 78 21,0 17,0 4,0
50,0 M 8 x 8 21,0 17,0 4,0
50,0 M 8 x 13 21,0 17,0 4,0
50,0 M 8 x 18 21,0 17,0 4,0
50,0 M 8 x 23 21,0 17,0 4,0
50,0 M 8 x 28 21,0 17,0 4,0
50,0 M 8 x 33 21,0 17,0 4,0
50,0 M 8 x 38 21,0 17,0 4,0
50,0 M 8 x 43 21,0 17,0 4,0
50,0 M 8 x 48 21,0 17,0 4,0
50,0 M 8 x 53 21,0 17,0 4,0
50,0 M 8 x 58 21,0 17,0 4,0
50,0 M10 x 8 21,0 17,0 4,0
50,0 M10 x 13 21,0 17,0 4,0
50,0 M10 x 18 21,0 17,0 4,0
50,0 M10 x 23 21,0 17,0 4,0
50,0 M10 x 28 21,0 17,0 4,0
50,0 M10 x 33 21,0 17,0 4,0
50,0 M10 x 38 21,0 17,0 4,0
50,0 M10 x 43 21,0 17,0 4,0
50,0 M10 x 48 21,0 17,0 4,0
50,0 M10 x 53 21,0 17,0 4,0
50,0 M10 x 58 21,0 17,0 4,0
50,0 M10 x 63 21,0 17,0 4,0
50,0 M10 x 68 21,0 17,0 4,0
50,0 M12 x 8 21,0 17,0 4,0
50,0 M12 x 13 21,0 17,0 4,0
50,0 M12 x 18 21,0 17,0 4,0
50,0 M12 x 23 21,0 17,0 4,0
50,0 M12 x 28 21,0 17,0 4,0
50,0 M12 x 33 21,0 17,0 4,0
50,0 M12 x 38 21,0 17,0 4,0
50,0 M12 x 43 21,0 17,0 4,0
50,0 M12 x 48 21,0 17,0 4,0
50,0 M12 x 53 21,0 17,0 4,0
50,0 M12 x 58 21,0 17,0 4,0
50,0 M12 x 63 21,0 17,0 4,0
50,0 M12 x 68 21,0 17,0 4,0
50,0 M12 x 73 21,0 17,0 4,0
50,0 M12 x 78 21,0 17,0 4,0
65,0 M10 x 8 25,0 20,0 6,0
65,0 M10 x 13 25,0 20,0 6,0
65,0 M10 x 18 25,0 20,0 6,0
65,0 M10 x 23 25,0 20,0 6,0
65,0 M10 x 28 25,0 20,0 6,0
65,0 M10 x 33 25,0 20,0 6,0
65,0 M10 x 38 25,0 20,0 6,0
65,0 M10 x 43 25,0 20,0 6,0
65,0 M10 x 48 25,0 20,0 6,0
65,0 M10 x 53 25,0 20,0 6,0
65,0 M10 x 58 25,0 20,0 6,0
65,0 M10 x 63 25,0 20,0 6,0
65,0 M10 x 68 25,0 20,0 6,0
65,0 M10 x 73 25,0 20,0 6,0
65,0 M10 x 78 25,0 20,0 6,0
65,0 M12 x 8 25,0 20,0 6,0
65,0 M12 x 13 25,0 20,0 6,0
65,0 M12 x 18 25,0 20,0 6,0
65,0 M12 x 23 25,0 20,0 6,0
65,0 M12 x 28 25,0 20,0 6,0
65,0 M12 x 33 25,0 20,0 6,0
65,0 M12 x 38 25,0 20,0 6,0
65,0 M12 x 43 25,0 20,0 6,0
65,0 M12 x 48 25,0 20,0 6,0
65,0 M12 x 53 25,0 20,0 6,0
65,0 M12 x 58 25,0 20,0 6,0
65,0 M12 x 63 25,0 20,0 6,0
65,0 M12 x 68 25,0 20,0 6,0
65,0 M12 x 73 25,0 20,0 6,0
65,0 M12 x 78 25,0 20,0 6,0
*****
